Experiment with Light Dependent Resistor Circuit

Light dependent resistor or LDR is another component that you should learn about if you are new to electronics project design. This component has a resistance value which vary with the intensity of light that shines upon it.



The typical value of LDR is greater than 1 Mega ohm if it is located in a dark environment. This value reduced to less than 1,000 ohm when light falls upon it.

This component is made of Cadmium Sulphide or Cds and you can recognized it by the spiraling track on the top surface of the component. Test the functionality of this part by using a multimeter that measures the resistance of a component.

First, place the component on a table and cover it with a non transparent paper. Measure the resistance. Do the same by shining a bright light onto its surface.


A LDR mounted on a breadboard.


Light Dependent Resistor Application Circuit

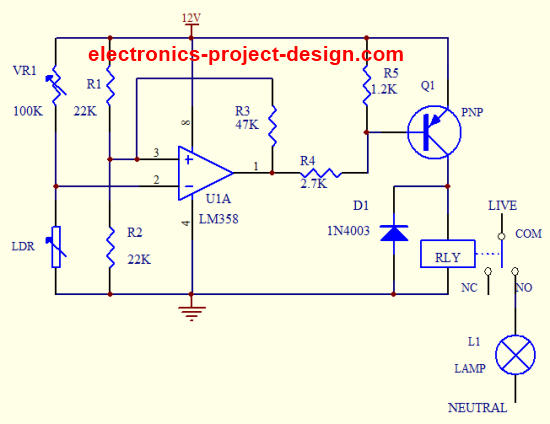

As shown in the circuit, the core component is operational amplifier LM358 and light dependent resistor. LM358 is configured with a hysteresis formed by it and the resistor R3 of 47K. This prevent the chattering of relay when the light intensity is unstable.

Two resistors R1 and R2 are used as potential divider that sets the reference voltage at positive input of the op-amp at 6V(when a 12V input is used).

The negative input of the op-amp is formed by variable resistor VR1 and the LDR. When the LDR is in the dark, the resistance will be very much higher than the VR1 causing the negative input to be higher than the positive input of the op-amp.

As a result, the output from LM358 will be LOW causing transistor Q1 to turn ON. The relay will also be ON. You can connect LIVE to the COM of the relay and a LAMP to the NO and Neutral to the end of the LAMP. This will cause the LAMP to turn ON in a dark environment.

In a bright environment, the LDR will have a resistance of about 1K causing the input voltage at the negative terminal to be close to 0V. This caused the output of the op-amp to be HIGH resulting in the switching OFF of PNP transistor Q1. This in effect turn OFF the relay and the LAMP will switch OFF.

One application of this circuit is to use it as a night light along the walkway. In this way, the light automatically lights up when night comes.


LDR Application Parts List


R1, R2 22K ohm 5% 1/4W Carbon Film Resistor
R3 47K ohm 5% 1/4W Carbon Film Resistor
R4 2.7K ohm 5% 1/4W Carbon Film Resistor
R5 1.2K ohm 5% 1/4W Carbon Film Resistor
VR1 100K ohm Potentiometer
LDR Light Dependent Resistor
Q1 2SA1015 PNP Transistor
D1 1N4003 Diode
U1A LM358 OP-AMP
L1 AC LAMP
